HOW TO CHOUSE THE SAW BLADE
The max rpm of the saw blade should be changed according to the cutting diameter and the plate.
Refer to the table 1 if the rpm is higher then the data, it will influance the performance and shorten the cutting life of the blade.

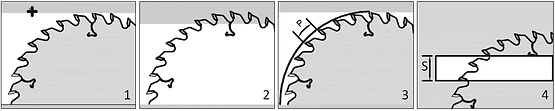

İt must be higher then the teeth top refer to picture 1 too much or less will lover the quality of the blade.
The working teeth number must be 3 or 4 as refer to picture 2 if less then 3 it will cause the vibration and can not get a smooth cutting face.
For the same diametre blade, if you want to cut tinner stock with longer cutting life choose the larger teeth blade.
HOW TO USE THE SAW BLADE
1-Make sure about the precision of the guide and principal axis.
2-The size of the flanges inside or out side must be same, cleane and flat.
3-Clean the saw blade before using.
4-Make sure about the right running direction, make sure the fixing is tight enough.
5-Re-Sharoen the blade regulary, do not use the blade optusaly.
6-Clean the body and tips before Re-Sharpening.
7-Choose the right grinding Wheel when re-sharpening,(Grain Hardless)make sure about the sharpness
and preventtips from chipping use the cooling oil.
8-When enlarge the bore, do not enlarge the bore size 20 mm, largerden before.
9-Check the section run out diameter.
10-Prevent the blade from off-center and then lover the quality.
11-Do not enlarge the bore size on plank multi-rip saw.
12-Please use the CNC grinding Machine to re-sharpen the blade do not use hand control, prevent from acedent.
NAME OF THE EACH PART ON BLADE
1-TIPS
2-BODY
3-TIP THICKNESS
4-BODY THICKNESS
5-HOOK ANGEL
6-TOP ANGEL
7-FACE INSIDE ANGEL
8-SIDE ANGEL
9-TOP BEVEL ANGLE
10-SIDEWARD ANGLE
11-CUTTING DIAMETTER
12-BORE
13-COPPER BIN
14-EXPENSION SLOT
15-WITH RAKERS (BODY PROTECTION DIAMONDS)
16-WITHOUT RAKERS (BODY PROTECTION GAPS)
